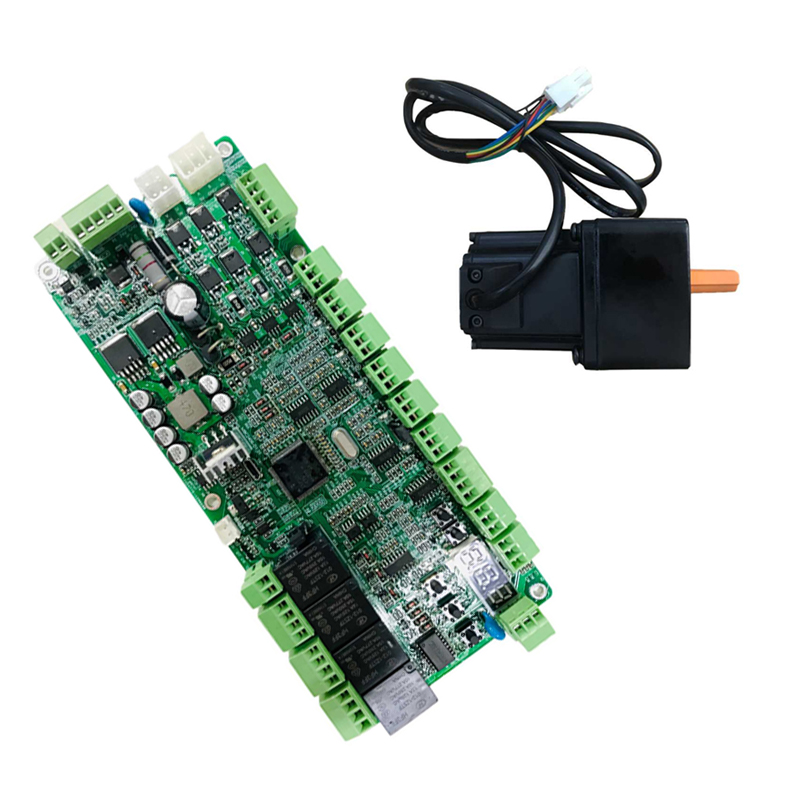

2400 Lines 40W BLDC Servo Motor With Gearbox 12000 Encoder

Name: 2400 Lines 40W BLDC Servo Motor With Gearbox 12000 Encoder
Brand: Jiayu
Price: 1 USD

Quality 2400 Lines 40W BLDC Servo Motor With Gearbox 12000 Encoder wholesale

Place of Origin : China

Brand Name : Jiayu

Model Number : MBS70F

Certification : CE

Packaging Details : package

MOQ : 2pcs

Price : Negotiable

Delivery Time : 10-15days after payment

Payment Terms : TT

Supply Ability : 500pcs per month

Type : Brushless Motor

Torque : 1.92nm

Continuous Current(A) : 2A

Rated voltage : 24V

Rated power : 25W

Continuous rated speed : 2000RPM

Continuous rated torque : 0.11NM

Peak current : 4A

Output speed : 110RPM

Encoder resolution : 12000

Contact Now

2400 Lines 40 W bldc servo motor with gearbox FOR SLIDING GATE turnstile

Product description

swing barriers motor MBS70F series are designed to working with swing barrier gate, speed gate and tripod turnstile control pedestrian entering and exiting, adopts 2400 lines encoder, suitable for indoor and outdoor situation, easy to install, and the bldc servo motor widely use for applications like stadium, apartment, gym, museum, station, library and factory etc.

Specification

Model Number	MBS60F-25A-2018-V3
Type	SERVO MOTOR
Torque	1.92nm
Construction	Permanent Magnet
Commutation	Brushless
Protect Feature	Drip-proof
Speed(RPM)	110ppr
Continuous Current(A)	2A
Efficiency	IE 2
Rated voltage	24V
Rated power	25W
Continuous rated speed	2000RPM
Continuous rated torque	0.11NM
Continuous rated current	2A
Peak current	4A
Output speed	110RPM
Output torque	1.92NM
Encoder resolution	12000

2400 Lines 40W BLDC Servo Motor With Gearbox 12000 Encoder

1. 3-phase low-voltage servo motor with gearbox

2. High efficiency for low energy consumption

3. With encoder for motor control feedback

4. Use low temperature greases for gearbox

5. Available in reduction ratio, 1:18 & 1:25& 1:50

Features

40W 1800RPM 1:25 Brushless servo motor work with 24V power supply
High-resolution position feedback with 2400 lines can realize accurate positioning with 12,000 pulses in a single turn
Compared with the traditional brushless motor 40W 3000RPM + 1000 lines encoder on the door, the positioning resolution of the door panel is 125 times higher than traditional brushless motor.
With servo closed loop control, can achieve 2 times current overload, strong push resistance is greater than the brushless force.
The service life is not less than 6 million times. Authoritative appraisal by third party testing institution.
Motor installation size compatible with traditional brushless motor, can realize fast interchange
300mm acrylic door panel, opening time up to 0.4 seconds
Cooperate with the servo vector algorithm, can achieve sensitive anti-pinch protection.
With Jiayu unique magnetic plait, 12,000 pulses can be achieved;

Advantages

High-resolution position feedback with 2400 lines
With servo closed loop control, can achieve 2 times current overload, strong push resistance is greater than the brushless force.
300mm acrylic door panel, opening time up to 0.4 seconds
Cooperate with the servo vector algorithm, can achieve sensitive anti-pinch protection.

2400 Lines 40W BLDC Servo Motor With Gearbox 12000 Encoder

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample order by low charging than order.

Q: What is your terms of payment ?

A: 100%TT in advance, 30% T/T in advance ,balance before shipment.
If you have another question, pls feel free to contact us as below.
